Octopus – Simplify Your Engraving Process

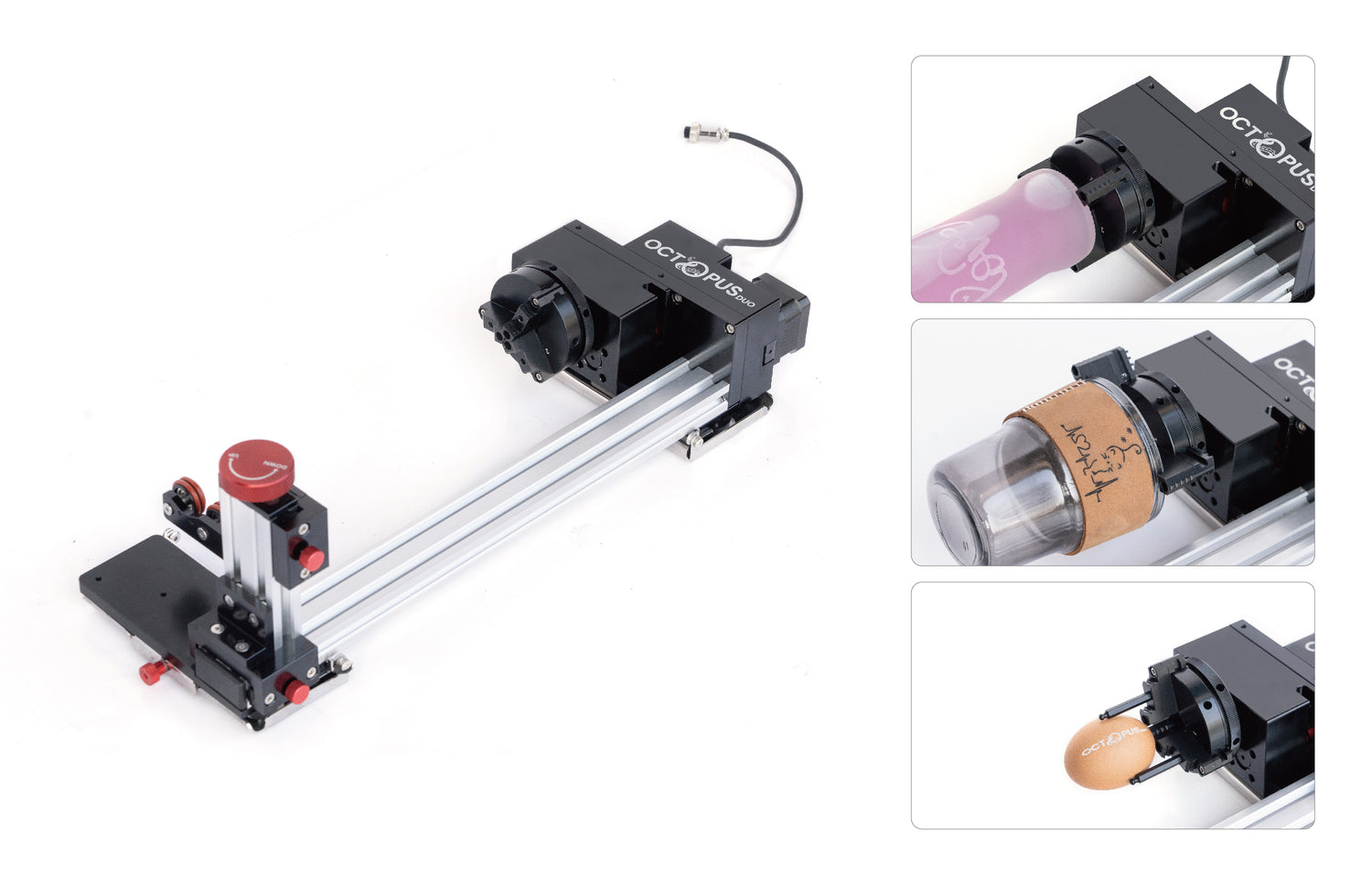

OctopusDuo is the first Multifunctional Laser Rotary Attachment solution under the Octopus brand by Pomelo Laser. Designed for precisely engraving cylindrical & irregularly shaped products. It ensures precision with each spin, generates excellent results on challenging surfaces & complicated curves. Integrates with almost all laser systems.

Adjusted Diameter
The OctopusDuo rotary chuck supports engraving on outer diameters from2mm to 100mm(clamping from the outside) andinner diameters from 13mm to 100mm(expanding from the inside). It can accommodate spheres ranging from 20mm to 120mm and extended probe diameters from 2mm to 50mm. No matter the complexity of your cylindrical objects, OctopusDuo meets all your engraving needs.

Adjustable Stable Design
The rotary turret design ensures ultra-high precision and stability, even at engraving speeds of400mm/s. It supports vertical height adjustments for various cylindrical and irregular objects such asbeveragecans,baseballs,wine glasses, andbottles, meeting both 180° and 360° rotary engraving needs.

Plug-and-Play Compatibility
No installation required, easy to use, powered and controlled directly by the laser engraver.
FEATURES | SPECIFICATION |
---|---|
Chuck Module | Maximum Diameter: 100mm, Minimum Diameter: 2mm |
Roller Module | Maximum Diameter: 100mm, Maximum Length: 565mm |
Roller Module Maximum Object Length | 150mm (including objects with handles like mugs) |
Recommended Object Diameter Difference | Up to 50mm (for roller module) |
Tailstock | Adjustable to support conical objects |
Clamping Jaws | Quick-change design with aluminum alloy material, preventing object slippage |
Module Switching | Easy switching between chuck and roller modules for different object shapes |
Precision | Minimizes vibration for stable, high-quality engraving and cutting |
