- Fastest in its class: 2000 mm/s engraving speed with RF tube, 1200mm/s with glass tube
- Acceleration 5G
- A Hassle-free maintenance due to Clean Pack Design and Magnetic Laser Head
- Material: Wood, glass, paper, leather, textiles, acrylic and many others
- Pass-through door for oversized size items
- Full safety - Class 1 Laser Machines for your peace of mind
- First in the Industry - flat work table with easy jigs mounting

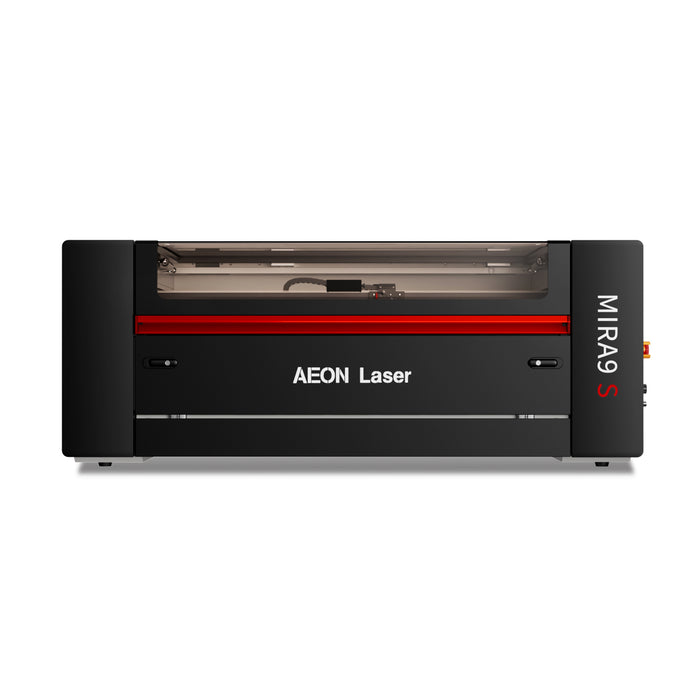

MIRA9 S 90W 100W RF30W 60W CO2 Laser
Original price
£8,050.00
-
Original price
£11,750.00
Original price
£8,050.00
£8,050.00
-
£11,750.00
Current price
£8,050.00
Aeon Laser Mira S series is the new improved Mira model. All models include camera, wifi, auto-focus, alignment-free optical path design. and automatic detection system (except for Mira 5S on the latter). We now offer these machines with either glass or metal RF laser tubes. It still presents top-tier, all-inclusive CO2 laser engraving and cutting systems, featuring built-in water cooling, fume extraction, and air assist compressor. These machines deliver complete functionality, elegant design, and a compelling price point, making them perfect for situations where premium performance is essential but space is restricted.
- Water cooler, exhaust fan, and air pump built-in
- Fastest in its range – 1200mm/s
- Working Area 900mm x 600mm
- Equipped to cut and engrave
- Autofocus
MIRA S Features
- Power Performance - High Speed: 2000 mm/s for engraving (RF tube)
Acceleration: 5G
Material: Wood, glass, paper, leather, textiles, acrylic - Intelligent Detection
and Diagnosis System - The working status of the laser machine can
be visualized by the intelligent detection and
diagnosis system. Key parameters such as
water temperature, current, air pressure, these
can be accessed through the panel. Protect
yourself and your device at any time. - Alignment-Free Optical Path Design - Replacing optical accessories quickly (laser tube/mirrors/lens) will not
change the optical path. - All-in-one Design - All the external accessories (air compressor/chiller/air blower) are built-in.
- Multi-Functional Work Table - Both cutting and engraving could be performed on one working table.
- Magnetic Design - Allow for the direct exchange of lenses.
- Fully Enclosed Dust-proof Guide Rail - Fully sealed linear guide protects the guide rail and light path from dust, reduces maintenance frequency.
- High-resolution Lightburn Camera - Positioning your artwork on your workpiece. Import your artwork into LightBurn, and
easily position your objects by dragging and dropping them onto the work area image.
Package Contents
Honeycomb Table *1
Accessories Box*1
Cleaning tools *1
Network Cable 5M *1
Data Cable 3M *1
Hexagon Wrench *1
Air Exhaust Pipe 5M *1
Key Switch *2
Pipe Hoop *2
USB cable mira camera
male on both ends *1
Lens Removal Tool *1
USB Flash Disk *1
Funnel *1
Rail lubricant *1
MIRA dimming target *1
Pipe clamp *1
Ventilation duct flange *1
Timing belt*1
Specifications
Working Area: 900mm*600mm
Machine Dimensions(mm):1328*1060*530
Max. Engraving Speed：2000mm/s(RF)
Max Acceleration Speed：5G
Max. lifting capacity：25kg
Net Weight (N.W)：210kg
Package Size：1420*1130*730mm
Control & Software:RDWorks & Lightburn Software
Graphic Format Supported: DSP/PLT/BMP/DXF/AI/DWG
Warranty
1-year warranty on all MIRA S laser machines and parts
6-month warranty on laser tube
CE Certified
Delivery time
Ships within 30 Days
